LD 8177
Product Properties
Product Features
Certificates
One system.
Lots of options.
kitchen alcove

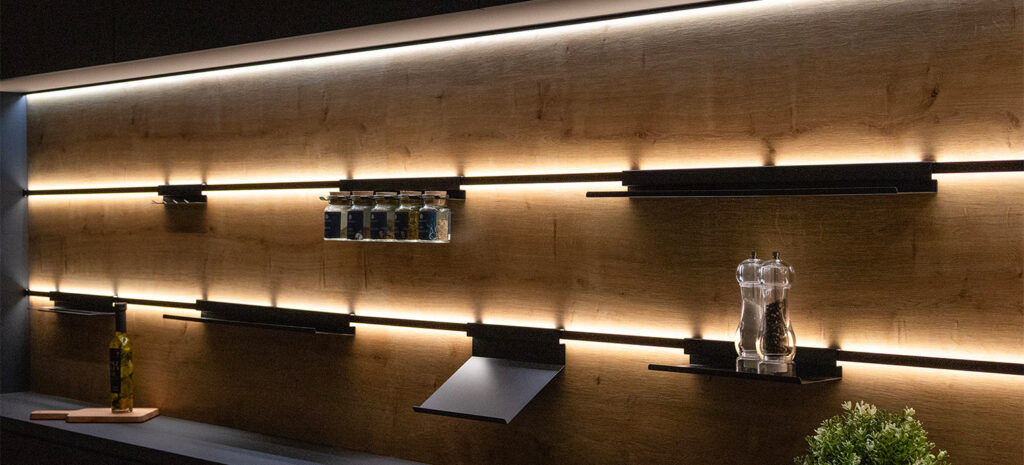

The LD 8177 is an elegant recessed lighting system for modern kitchens. The lighting concept is based on a minimalist design that uses a minimal amount of material, providing even, high-quality illumination along the back panel. It adds structure to the kitchen units and enhances the recessed area both functionally and visually.
Rear panel and integration
The system is designed for integration into 16 mm back panels and allows for both horizontal and vertical installation. A range of profile options offers great design flexibility and supports a clean, interior-focused lighting solution with crisp lines.
Modular system

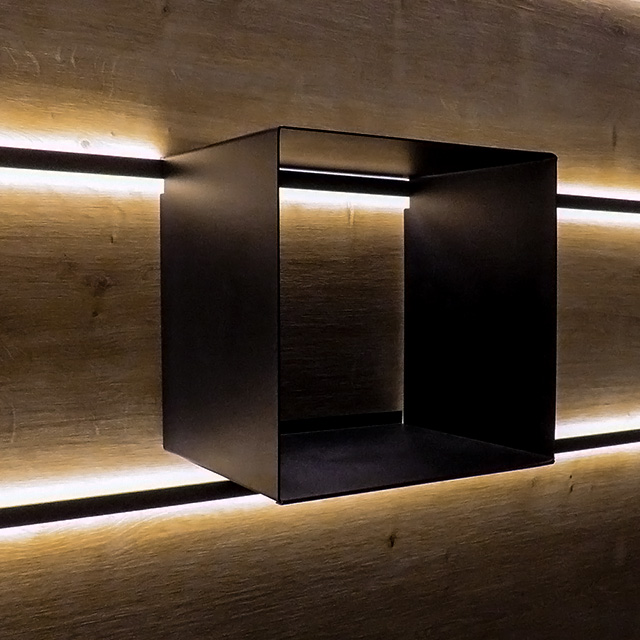

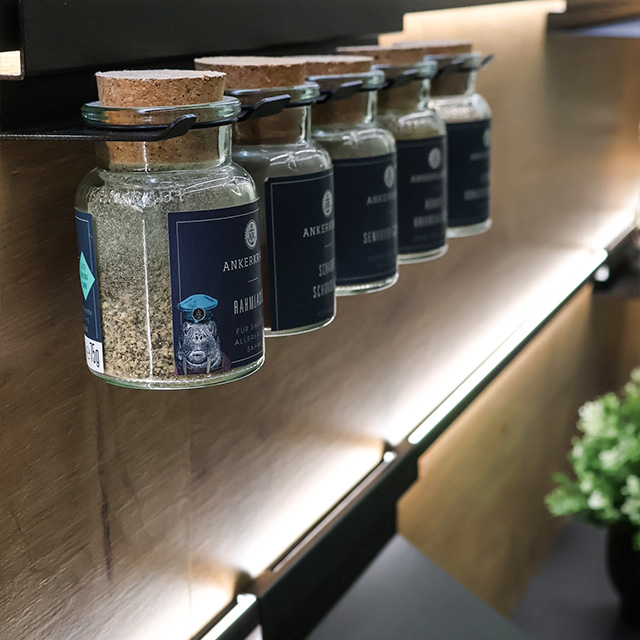

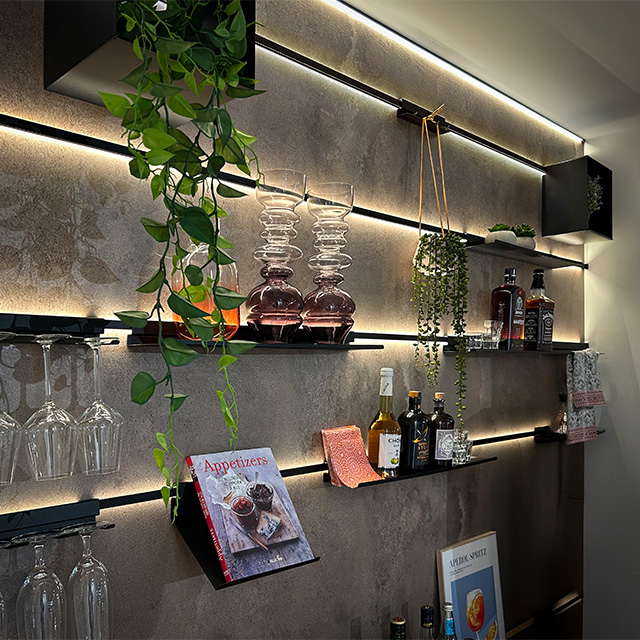

Optional storage solutions such as storage boxes, hook rails or shelves enhance the system’s functionality. Lighting and accessories work in harmony to create a seamless solution that ensures tidiness, clarity and efficient use of the kitchen alcove.
LED applications at their best

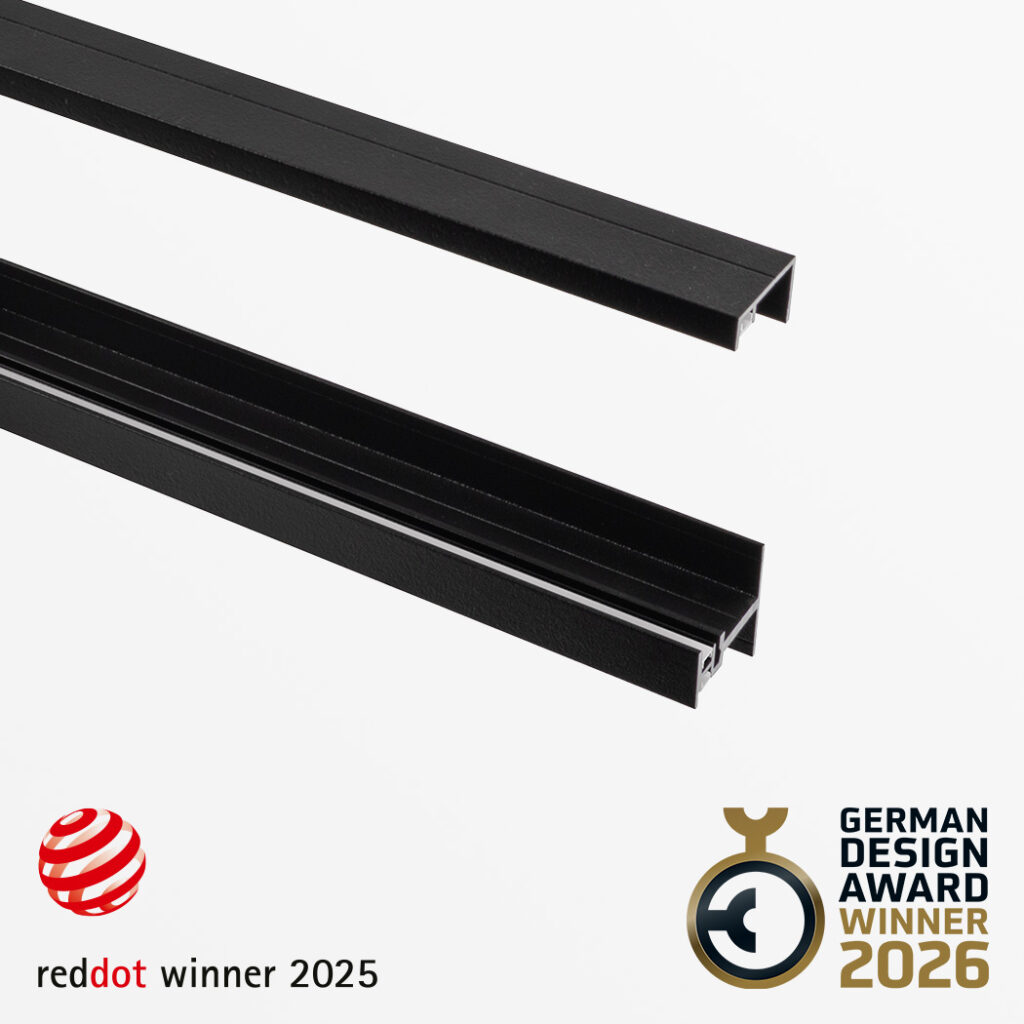

The LD 8177 recessed light combines precise lighting technology with a consistently minimalist design. As a Red Dot Award winner in 2025 and recipient of the German Design Award in 2026, it stands for high design quality and a well-thought-out system concept. Customisable lengths, variable light colours and a modular accessory concept make it the ideal solution for sophisticated kitchen designs in project and furniture construction.
Technical specifications
Profile: Black aluminium
Cover: Opal white
End caps: Plastic
Operating voltage: 230 V
Frequency: 50/60 Hz
Colour rendering index: RA > 90
LED type: COB, SMD
Dimmable: Yes
Connection system: Depends on configuration
Connection cable: Depends on configuration
Specifications
| Item number | Light colour (K) | Power (W) | Colour | Length (mm) | Lumen (lm) |
|---|---|---|---|---|---|
| 50000022 | 2700–6400 | 2 × 10.5 | Black | 150–3200 | 93–95 lm/W |
| 50000023 | 2700–6400 | 10.5 | Black | 150–3200 | 93–95 lm/W |
| 50000024 | 2700–6400 | 10.5 | Black | 150–3200 | 93–95 lm/W |
Lengths can be customised. Other light colours available on request.
Downloads
Product information and installation instructions available for free download.
| File | Format | Link |
|---|---|---|
| Catalogue page LD 8177 | Download |
