LD 8104
Product Properties
Product Features
Certificates
LED applications at their best.
One luminaire. Clean lines.
Slim recessed light for seamless integration into furniture

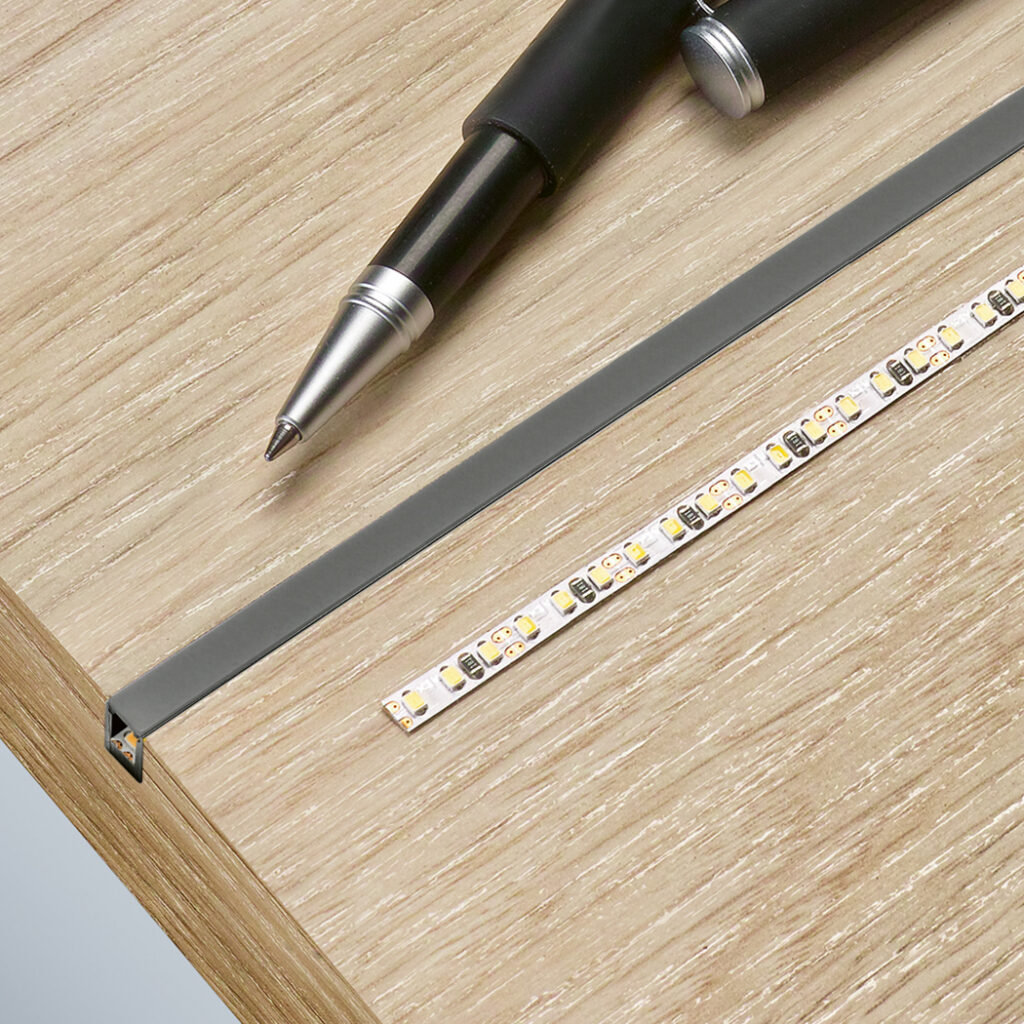

The LD 8104 is a particularly compact recessed luminaire designed for furniture and interior fittings where lighting needs to be integrated discreetly and precisely. With a profile width of just 6.4 mm and a height of 10 mm, the luminaire can be integrated almost invisibly into furniture surfaces, providing a clear, even line of light.
Reliable lighting technology for furniture manufacturing
The LD 8104 utilises energy-efficient LED technology with a 24 V operating voltage and is available not only in fixed light colours but also in Tunable White (2700–6400 K MIX). This allows the light colour to be flexibly adapted to the specific application and room design. Its IP44 protection rating also allows it to be used in areas with high humidity.
Flexible planning options thanks to a range of lengths, covers and end caps

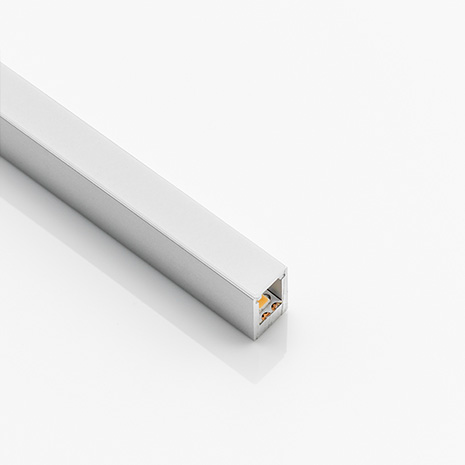

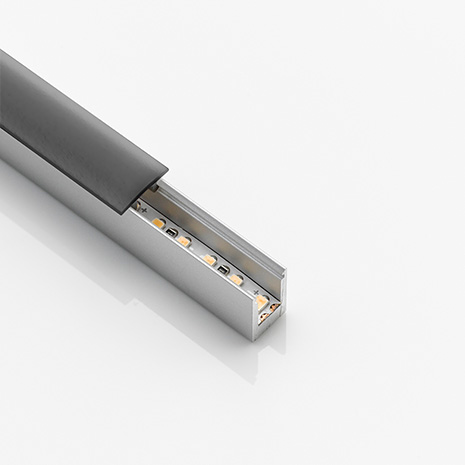

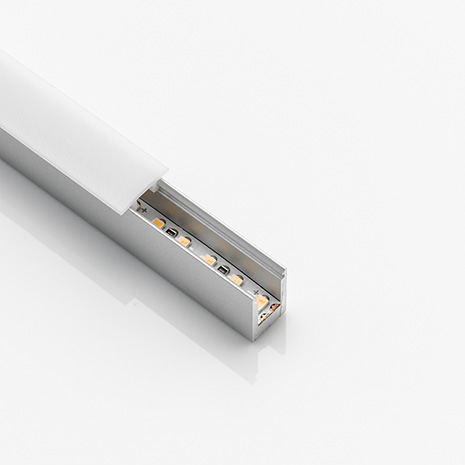

The luminaire is fully customisable and can be fitted with either a flush-fitting or overlapping cover.

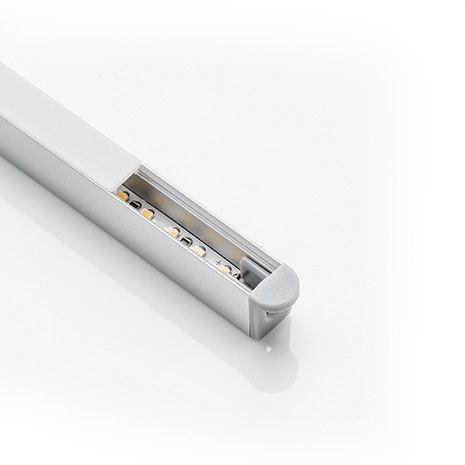

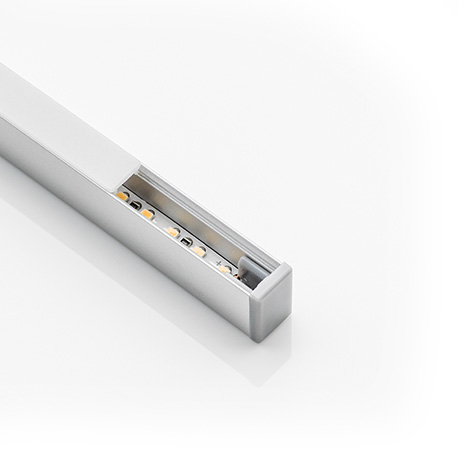

A range of end caps (flat or rounded) also allows for adaptation to different design and installation scenarios.

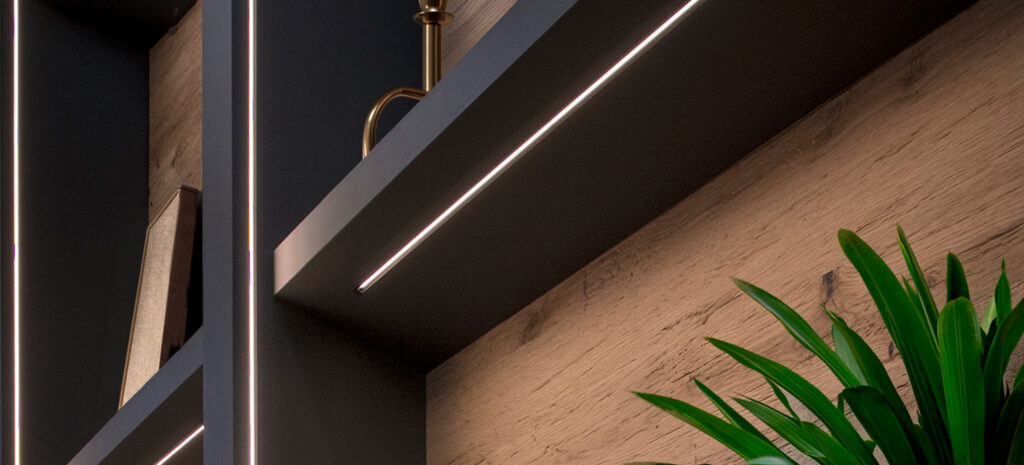

Light that disappears into the furniture

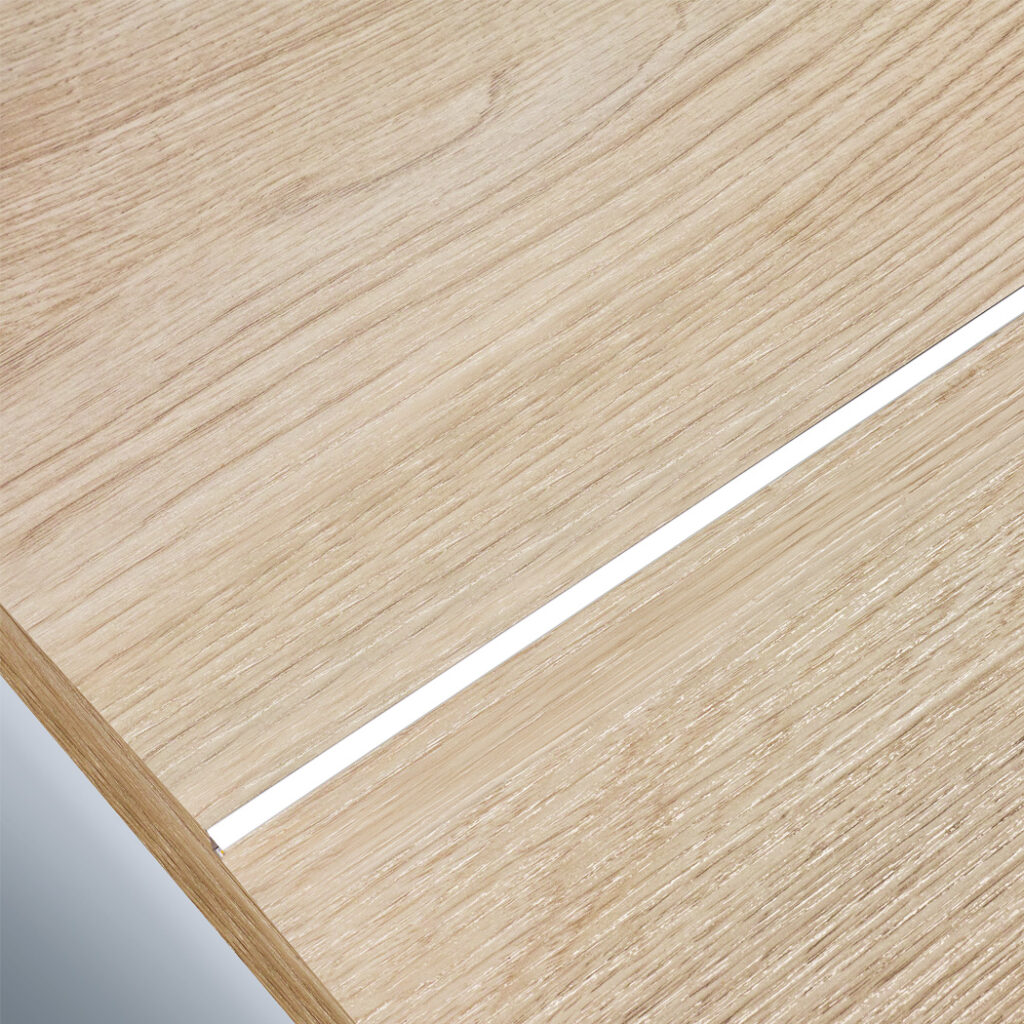

The LD 8104 has been designed for applications where light needs to be functional without drawing attention to itself. Its slim profile blends almost invisibly into furniture surfaces, creating a calm, precise line of light. With a range of covers, end caps and variable light colours, the luminaire can be precisely adapted to suit the design, function and spatial effect. Ideal for modern furniture and interior design concepts.
Technical specifications
Profile: Aluminium
Cover: Opal white
End caps: Plastic
Operating voltage: 24 V
Colour rendering index: RA > 90
LED type: SMD
Dimmable: Yes, depending on the driver
Connection system: Depends on configuration
Connection cable: Depends on configuration
Specifications
| Light colour (K) | Power (W) | Colour | cover | Length (mm) | Lumen (lm) |
|---|---|---|---|---|---|
| 3000 / 4000 / 2700–6400 | depending on the configuration | Silver | White opal, flush-mounted | 250–3,000 | depending on the configuration |
| 3000 / 4000 / 2700–6400 | depending on the configuration | Silver | Black, flush | 250–3,000 | depending on the configuration |
| 3000 / 4000 / 2700–6400 | depending on the configuration | Black | White opal, flush-mounted | 250–3,000 | depending on the configuration |
| 3000 / 4000 / 2700–6400 | depending on the configuration | Black | Black, flush | 250–3,000 | depending on the configuration |
| 3000 / 4000 / 2700–6400 | depending on the configuration | Silver | White opal, overlapping | 250–3,000 | depending on the configuration |
| 3000 / 4000 / 2700–6400 | depending on the configuration | Silver | Black, overlapping | 250–3,000 | depending on the configuration |
| 3000 / 4000 / 2700–6400 | depending on the configuration | Black | White opal, overlapping | 250–3,000 | depending on the configuration |
| 3000 / 4000 / 2700–6400 | depending on the configuration | Black | Black, overlapping | 250–3,000 | depending on the configuration |
Custom lengths with various LED strips are available on request.
